Whats the spiral on an engine fan for?

Read the forum code of contact

Member for

20 years 8 months

Posts: 1,381

Hi all

This just occured to me - what's the painted spiral on the cone at the centre of the fan for, as shown in the a.net shot? i see it on some engines, but not on others?

http://www.airliners.net/open.file/0998402/L/

thanks

Original post

Member for

19 years 11 months

Posts: 1,012

Suppose to make it more noticeable when its spinning

Member for

24 years 2 months

Posts: 2,956

It's designed to scare birds away to prevent bird strikes.

Member for

18 years 2 months

Posts: 328

yer im sure its to show ground staff aswell that it is still turning

Member for

18 years 7 months

Posts: 5,530

It's the two reasons mentioned above. Its primary function (as I understand it at least) is to scare birds away. Birds have a higher vision 'refresh rate' than humans, so although it may just look like a tiny swirl in the middle of the fan to us, for birds it's much more noticable.

And of course it allows ground crews to see when the engine is tuning in low light when it's not easy to see the fan blades.

Paul

Member for

18 years 6 months

Posts: 89

To hypnotize the curious onlookers ;)

Member for

20 years 8 months

Posts: 1,381

cheers guys!

Member for

19 years 11 months

Posts: 170

How could anyone man or bird see the spiral once the engine has been run up.
Unless they have strobe vision!

Member for

19 years 5 months

Posts: 93

How could anyone man or bird see the spiral once the engine has been run up.
Unless they have strobe vision!

Dude.. read all the posts again. Birds have better framing rate than humans. Hence... !

Member for

20 years 8 months

Posts: 1,381

How could anyone man or bird see the spiral once the engine has been run up.
Unless they have strobe vision!

Well, I guess if you can't see it - you know its spinning.

Member for

18 years 6 months

Posts: 2,343

...what's the painted spiral on the cone at the centre of the fan for,...i see it on some engines, but not on others?

Interesting topic, I too have been curious to know why this is the case...and now I know - thanks for the information!

To hypnotize the curious onlookers ;)

LMAO!:D:D:D

Member for

19 years 1 month

Posts: 192

While the tips may be going round close to the speed of sound the centre is stationary. As distance from the centre increases as does the speed. It is possible to see the shape (it's not always a spiral) painted on the spinner particularly at idle.

Another use of the shape is to indicate rotation to the pushback crew as some engines require a call to confirm the N1 is rotating before fuel is selected on. I don't know why some engines don't have them though. We have one aircraft that has one engine with the painted spinner and one that doesn't.

Member for

24 years 2 months

Posts: 4,213

They arn't an aircrafts equivalent of go faster stripes :eek: :eek: :eek: :eek: :eek:

Member for

24 years 2 months

Posts: 4,213

A little trick i learnt in pre-gcse HE classes - If you get the paint in its pourable form and spin the nose cone for the fan blades very quickly (like normal idle spinning or maybe just a bit less) then pour the paint from the center in a line directly to the edge of it. This will create the spiral effect :D

Usually used with chocolate or carmel etc

Member for

19 years 1 month

Posts: 192

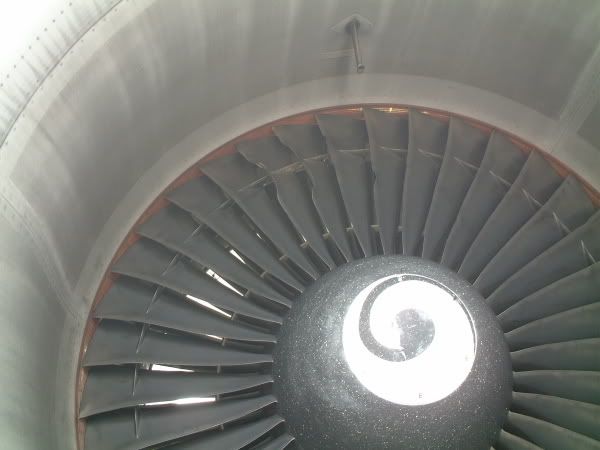

How about painting this type?

Engine damage caused by a heron hit very close to V1!

http://img.photobucket.com/albums/v701/hughjarse/DSCF0085.jpg

Member for

20 years 8 months

Posts: 1,381

How about painting this type?

Engine damage caused by a heron hit very close to V1!

http://img.photobucket.com/albums/v701/hughjarse/DSCF0085.jpg

did the heron make that large white mess on the cone?

seriously now, to raise another question, whats the pipe sticking out of the top of the engine casing in that picture for?

Member for

24 years 2 months

Posts: 4,213

pitot tube?

Member for

24 years 2 months

Posts: 3,538

Pitot tubes are used to measure the air pressure resultant from the forward motion of the aircraft.
This probe measures the pressure of the air immediately prior to entering the fan/compressor stages and amongst other things is used to compute the EPR indication.

Member for

24 years 2 months

Posts: 4,213

So is that a yes?

Member for

18 years 6 months

Posts: 89

I think the real reason is, if you use fluoroscent lighting, you will misjudge the fan speed. The spiral will clearly show the actual rotation. That will help maintenance crews. JM2C

Member for

24 years 2 months

Posts: 3,538

So is that a yes?

No. Pitot probes are on the nose. :p
